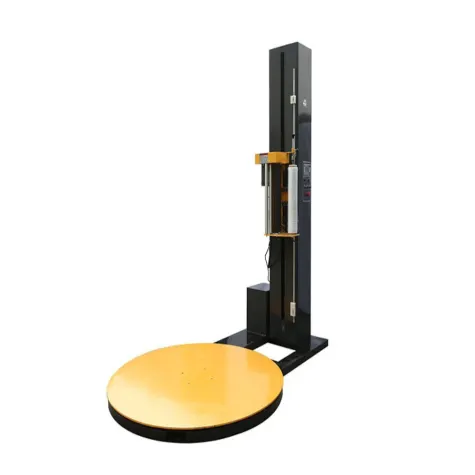

Standard Wrapping Machine
Standard Wrapping Machine

Standard Wrapping Machine

The T1650F stretch wrapper is equipped with a turntable sized to handle standard 1.2m x 1.2m pallets, providing reliable, consistent pallet wrapping for everyday applications. Its pre-stretch film carriage significantly reduces film usage while improving load stability, delivering a more efficient and cost-effective packaging process.

Product Information

Features

  • Wraps standard 1.2m x 1.2m (40” x 48”) pallets
  • Pre-stretch film carriage significantly reduces film usage
  • Adjustable wrapping cycles for customized load protection
  • Variable turntable + film carriage speed improves throughput and consistency
  • Heavy-duty 1650 mm (65”) turntable supports up to 2000 kg / 4409 lbs
  • Height-sensing system automatically detects pallet height
  • Optional opening-door film carriage for faster film roll changes
  • Optional ramp accessory for easy pallet loading with pallet jacks
  • Optional automatic film cutting/breaking function

Standard Wrapping Machine Specifications

ModelT1650F Series
TypeSemi-Automatic Standard Pallet Stretch Wrapper
Production Speed20 - 40 loads/hour
Max Load Size43.3 - 47.2 in x 43.3 - 47.2 in x 19.7 - 78.7 in
Max Load Weight4,409 lbs (2,000 kg)
Turntable65 in
Turntable Speed?
Film CarriagePre-stretch film carriage (Pre-stretch % ?)
PLC / ControlsHeight sensing + adjustable wrap cycles
Electrical220V, Single Phase, 50 Hz (Amps blank)
StructureHeavy-duty frame; optional loading ramp (Forklift portable blank)
Safety FeaturesE-stop
