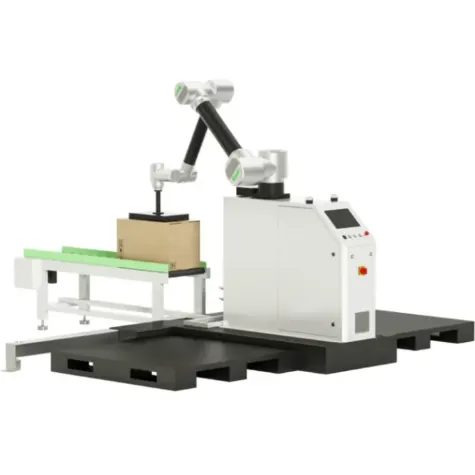

Cobot Palletizing Robot
Cobot Palletizing Robot

Cobot Palletizing Robot

The ELC-PP-CO is a light-duty palletizing robot that safely works alongside humans without safety fences. It handles two pallet stations at once and features advanced collision detection and sensor safety monitoring. Ideal for palletizing in food, pharmaceutical, 3C, daily chemical, and e-commerce industries.

Product Information

Features

  • Safely works alongside humans without the need for safety fences.
  • Can palletize two stations simultaneously for improved efficiency.
  • 10-level collision detection and sensor safety monitoring ensure reliability.
  • Compact, integrated design with flexible setup and small footprint.
  • Easy installation and programming for quick deployment.
  • Ideal for light-duty palletizing in food, pharmaceutical, 3C, daily chemical, and e-commerce industries.

Cobot Specifications

ModelELC-PP-CO16ELC-PP-CO20ELC-PP-CO25ELC-PP-CO30ELC-PP-CO35
Power3 kW3 kW3.25 kW3.5 kW4.75 kW
Base StyleLifting
Palletizing Height90.6 in (2300 mm)90.6 in (2300 mm)82.7 in (2100 mm)88.6 in (2250 mm)88.6 in (2250 mm)
Maximum Load35.3 lb (16 kg)44.1 lb (20 kg)55.1 lb (25 kg)66.1 lb (30 kg)121.3 lb (55 kg)
Maximum Pallet Size≤ 51.2 x 51.2 in (≤ 1300 x 1300 mm)≤ 51.2 x 51.2 in (≤ 1300 x 1300 mm)≤ 47.2 x 47.2 in (≤ 1200 x 1200 mm)≤ 49.2 x 49.2 in (≤ 1250 x 1250 mm)≤ 49.2 x 49.2 in (≤ 1250 x 1250 mm)
Working Radius74.8 in (1900 mm)74.8 in (1900 mm)63.0 in (1600 mm)68.9 in (1750 mm)68.9 in (1750 mm)
Footprint141.3 x 68.3 in (3590 x 1735 mm)141.3 x 68.3 in (3590 x 1735 mm)141.3 x 68.3 in (3590 x 1735 mm)141.3 x 68.3 in (3590 x 1735 mm)165.0 x 68.3 in (4190 x 1735 mm)
Max Speed12 cycles/min11 cycles/min10 cycles/min10 cycles/min9 cycles/min
IP RatingIP54
Power Supply200 - 240 V, 50/60 Hz, Single-Phase
Operating Temperature32 - 131°F (0 - 55°C)
Weight1,102 lb (500 kg)1,102 lb (500 kg)1,102 lb (500 kg)1,102 lb (500 kg)1,323 lb (600 kg)
Servo Motor / DrivePanasonic
ReducerNidec-Shimpo / LaifualDrive
Motion Control PLCKEBA
