Metal Detector
Metal Detector

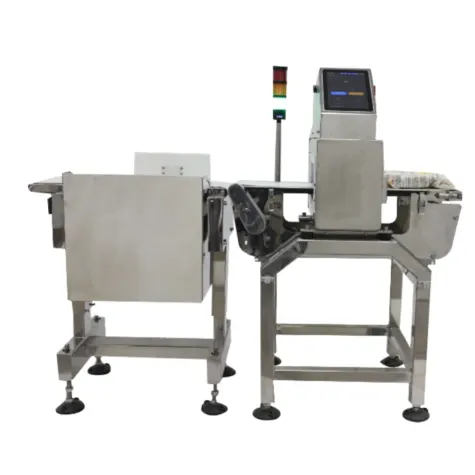

Android HMI Metal Detectors with Quick Release Conveyor

High quality stainless steel frame and intuitive Android touchscreen operation with easy self-learning product setup. Toolless quick release belt for easy cleaning and maintenance.

Product Information

Features

  • Large 10" Android HMI touchscreen
  • 304 stainless steel frame
  • Store settings for up to 100 products
  • Easy Auto product setup with self-learning function
  • High-speed digital signal processor for improved detection accuracy and stability
  • Can detect iron, stainless steel, copper, aluminum, lead, and other metals
  • 100–240 VAC, single phase, 50/60 Hz

Options

  • Air Jet rejection method
  • Flipper rejection method
  • Push Bar rejection method
  • Trap door rejection method

Choose your configuration

ELC-MDAQ · QUICK-RELEASE CONVEYOR

Tool-free belt removal · 10″ Android touchscreen · 304 stainless steel

1Aperture width
2Aperture height

Configuration availability confirmed with your quote. †180 mm option requires confirmation.

Selected SKU

ELC-MDAQ4015
Aperture · width × height
15.7″ × 5.9″ (400 × 150 mm)
Conveyor belt width
11.8″ (300 mm)
Effective opening · width × height
13.0″ × 4.7″ (330 × 120 mm)
Ferrous (FE) reference
1.2 mm*
Stainless steel (SUS) reference
2.0 mm*

Supplier references by tunnel height. Confirm product clearance and detection performance with ELC.

*The supplier lists conflicting sensitivity figures at 150 mm. These reference values require confirmation.

Prepare a quote inquiry

Standard features & specifications
Belt speed
32.8–196.9 ft/min (10–60 m/min), adjustable
Product memory
100 product recipes
Power supply
100–240 VAC · single phase · 50/60 Hz
Rated power
Approximately 300 W
Detection technology
Multi-frequency, dual-system
Reject options
Air jet · Pusher · Flap

Confirm specifications and reject options for your ordered configuration. Contact ELC for load capacity, washdown rating, and operating conditions.

Detection performance & product fit

The displayed sensitivity figures are supplier height-table references. Detection performance depends on the product and selected aperture; confirm requirements for your configuration with ELC.

Aperture height is the tunnel dimension. Usable product clearance may be smaller; use the effective opening where listed and confirm product suitability.

Reject Type: Air Jet

Reject Type: Flipper

Reject Type: Push Bar

Reject Type: Trap Door
