Metal Detectors Under Weigher Style

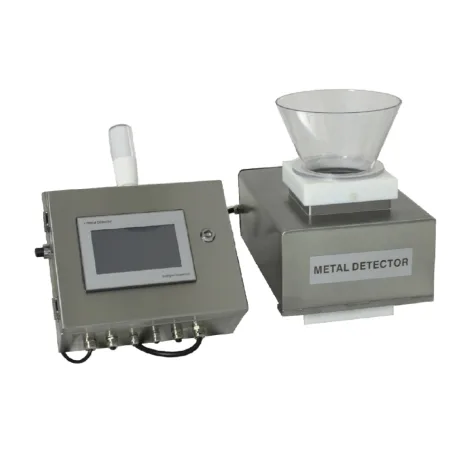

Metal Detectors Under Weigher Style (Flow Through Gravity Fed)

High quality stainless steel frames and intuitive touchscreen operation with easy self-learning product setup. Choose the size of the opening and belt width required.

Product Information

Features

304 stainless steel frame
Store settings for up to 100 products
Easy Auto product setup with self-learning function
Intuitive HMI with large LCD touchscreen
High-speed digital signal processor for improved detection accuracy and stability
Can detect iron, stainless steel, copper, aluminum, lead, and other metals
220 Volt 1 Phase

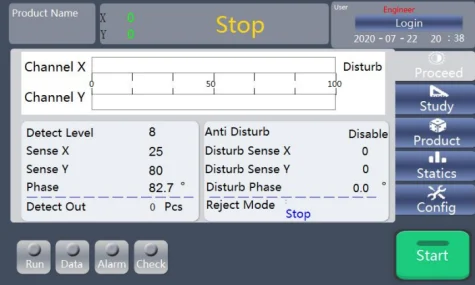

HMI

screenshot of the actual user interface built into the product

Specs

Model		ELC-UMD50	ELC-UMD110	ELC-UMD140	ELC-UMD200
Aperture Diameter		2inches (50mm)	4 3⁄8inches (110mm)	5 1⁄2inches (140mm)	7 3⁄4inches (200mm)
Detection Sensitivity	FE	∅0.4	∅0.6	∅0.9	∅1.0
	NF	∅0.7	∅0.8	∅1.2	∅1.5
	SUS	∅1.0	∅1.2	∅1.5	∅2.0
Detection Method		Electric Induction
Product Preset Quantity		Up to 100 different product presets can be saved.
Protection Level		IP-54 international standard
Power		85~220V 1PH 60Hz 55w \| Dedicated circuit and power filter recommended
Operating Environment		Temperature: 14~104°F (-10~40°C) \| Relative Humidity 30~85%
Rejection Methods		XXXXX\|Signal to Packaging Machine
Price		$10,950	$11,450	$11,950	$12,950

*Price may vary for custom sizes options.
