ELC Packaging Machines Company

Metal Detectors Conveyor Style

Metal Detectors Conveyor Style

High quality stainless steal frames and intuitive touchscreen operation with easy self-learning product setup. Choose the size of the opening and belt width required.

Product Information

Features

304 stainless steel frame
Store settings for up to 50 products
Easy Auto product setup with self-learning function
Intuitive HMI with large LCD touchscreen
High-speed digital signal processor for improved detection accuracy and stability
Can detect iron, stainless steel, copper, aluminum, lead, and other metals
220 Volt 1 Phase

Options

Air Jet rejection method
Flipper rejection method
Pushbar rejection method
Trap door rejection method

Specs

Model		ELC-MDC30 Series			ELC-MDC40 Series			ELC-MDC60 Series
Conveyor Belt Width mm		250			350			550
Max Opening Height mm		100	150	200	100	150	200	100	200	300
Detection Senitivity	FE	∅0.8	∅1.0	∅1.2	∅0.8	∅1.0	∅1.2	∅0.8	∅1.2	∅2.0
Detection Senitivity	SUS	∅1.5	∅2.0	∅2.5	∅1.5	∅2.0	∅2.5	∅1.5	∅2.5	∅3.0
Detection Method		Electric Induction
Belt Speed		10-30m/min (32.5-98ft/min)
Conveyor Transport Weight		Maximum 10kg						Maximum 30kg
Product Preset Quantity		Up to 50 different product presets can be saved.
Protection Level		IP-30 international standard (conforms to IP-66 international standard for waterproofing)
Power		220V 1PH 60Hz 220w						220V 1PH 60Hz 280w
Operating Environment		Temperature: 0~40°C (32~104°F) \| Relative Humidity 30~85%
Rejection Methods		Air Jet \| Flipper \| Push Bar \| Door Flap
Price		$14,950 - $15,950			$15,950 - $16,950			$19,950 - $21,950

*Price may vary for custom sizes options.

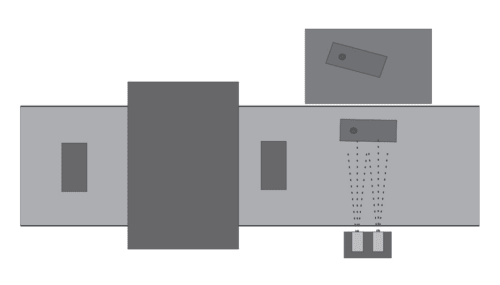

Reject Type: Air Jet

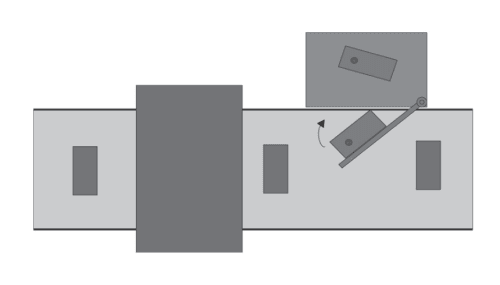

Reject Type: Flipper

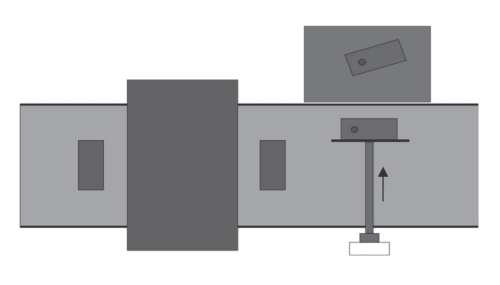

Reject Type: Push Bar

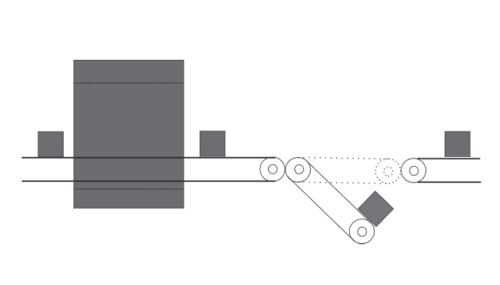

Reject Type: Trap Door
