ELC DK Thermal Transfer Overprinter

ELC DK Thermal Transfer Overprinter

Product Information

Features

  • Print Contents: Bar Code, QR Code, Image, Variable Information, etc.
  • Modes: Intermittent And Continuous Mode Combined
  • Load New Prints: USB or LAN
  • Print Speed: Continuous Max. 40 Meters/minute; Intermittent: 450PP
  • Consumable: Thermal Transfer Ribbon
  • Optional: Mounting Bracket, Encoder, TTR Ribbon, Rubber Pad, etc.

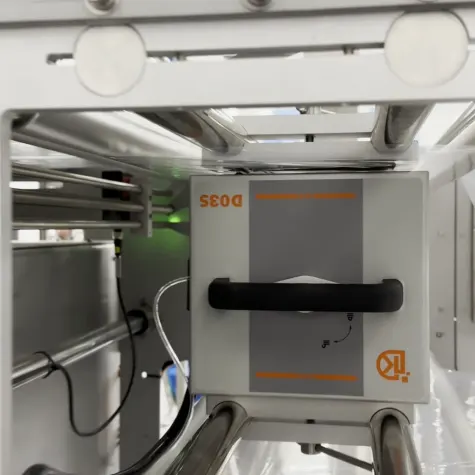

D03S Installed

Example of an installed D03S unit

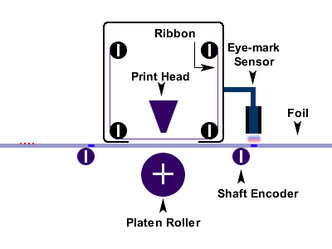

Continuous Mode

Animation demonstrating Continuous Mode

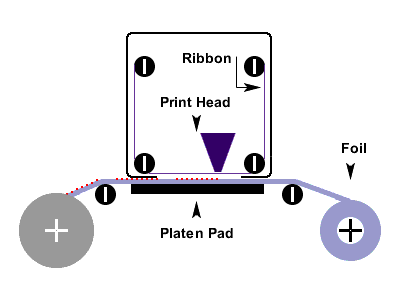

Intermittent Mode

Animation demonstrating Intermittent Mode

Specs

ModelD03SD05S
Print HeadKyocera, 32mm; 300DPIKyocera, 53mm; 300DPI
Print AreaIntermittent: 32mm*60mm
Continuous: 32mm*100mm		Intermittent: 53mm*70mm
Continuous: 53mm*190mm
Ribbon Size33mm*500m53mm*600m
Print FrequencyIntermittent: up to 350PPM
Continuous: up to 40 meters/ minute		Intermittent: up to 350PPM
Continuous: up to 40 meters/ minute
Environmental Operating Temperature0-40℃
32-104℉
Relative Humidity10%~95% (non-condensing)
PowerAC110~220V, 50/60Hz, 150W
Air Supply6bar/ 90PSI (MAX) dry uncontaminated
WeightPrint head: 18.7lbs / 8.5kg
Control box: 4.4lbs / 2.0kg		Print head: 19.8lbs / 9.0kg
Control box: 4.4lbs / 2.0kg
Dimensions
(L*W*H)		Print Unit: 188mm*190mm*180mm
Controller Box: 210mm*180mm*155mm		Print Unit: 210x210x180mm
Controller Box: 175x235x110mm
Price$4,850$5,850
